Eclipse Plus

Eclipse Plus

Die in diesem Abschnitt enthaltenen Informationen sind ausschließlich für die Verwendung durch medizinisches Fachpersonal bestimmt.

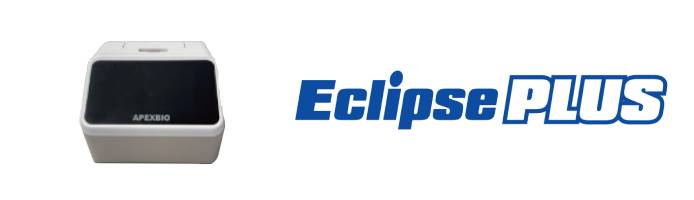

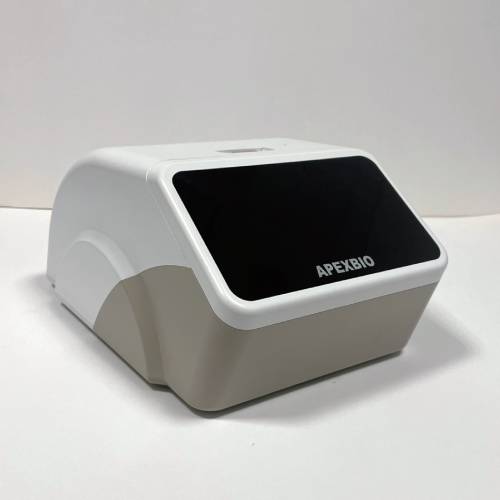

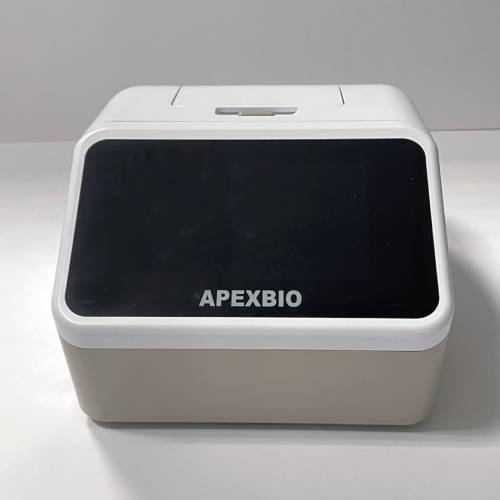

The Eclipse Plus is a multi-purpose point-of-care testing (POCT) analyzer designed for rapid, quantitative measurement of key analytes related to diabetes.  It is compact, user-friendly, and suitable for use in various healthcare settings, including hospitals, clinics, and physician offices.  The analyzer utilizes a unique methodology combining immunoagglutination assay and optical sensing to provide accurate results within minutes.

A single cartridge automatic system designed for precise and reliable HbA1c measurement, ideal for point-of-care testing and diabetes management.

Key Features:

  • Measurement Principle: Employs immunoturbidimetric detection on a cartridge, providing a simple and effective method for HbA1c quantification.
  • High accuracy and precision with NGSP and IFCC certification, ensuring reliable results for clinical decision-making.
  • Fast analysis time with results in under 60 seconds, enabling efficient workflow and timely patient care.
  • User-friendly interface with intuitive software, requiring minimal training and facilitating ease of use.
  • Low maintenance requirements for optimal efficiency, minimizing downtime and maximizing productivity.

 Benefits:

  • Improved patient management through accurate HbA1c monitoring, aiding in the assessment and adjustment of diabetes treatment plans.
  • Enhanced workflow efficiency with rapid analysis, allowing healthcare professionals to focus on patient care.
  • Cost-effective solution for HbA1c testing, reducing expenses associated with laboratory testing and improving accessibility to care.
Display

5" Full Colour LCD


  • DISPLAY UNIT

HbA1c

%, mmol/mol, eAG


Operating/User Interface

Touch Panel Screen


Data Port

Type-A USB(for printer); Type-B USB(for PC Interface)


Power Supply

1WAT~240V, 50/60Hz


Size

289.3(l) *206.1(w) *141(h) (mm)


Weight

1.7kg


  • OPERATING CONDITION

Temperature

18~35℃/Humidity: <80%


  • ANALYZER STORAGE CONDITION

Temperature

4~50℃/Humidity: <80%


  • CARTRIDGE STORAGE TEMPERATURE

HbA1c

2~8℃


Accessories

Optical Control Cartridge, Barcode Scanner, Printer, USB Cable, Power Adaptor, Memory: 250 Test results


Compatible with Menarini’s POCT Dada Management System NetCare 4.0

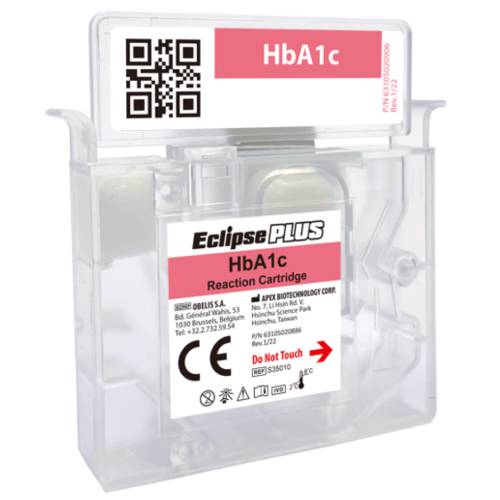

Cartridge

Code

Auto


Measurement range

4~14 %


Sample Volume

0.5ul  Capillary and Venous Whole Blood


Testing Time

4 min 50 sec


Storage Temperature

2~8 °C


Operation Temperature

18~35°C

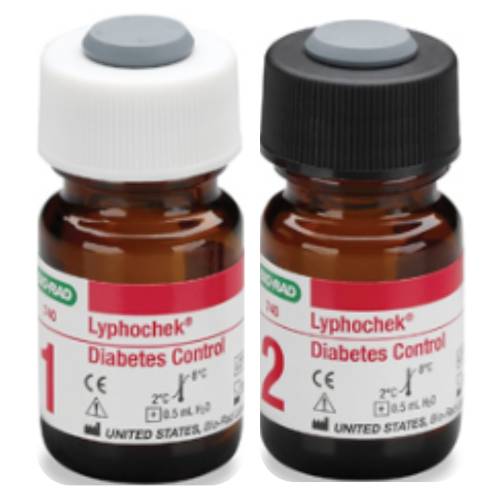

Control Solution
